RSNA Press Release

Carotid Plaque May Pose Danger over Time

Share: Share on Facebook PDF

Released: June 03, 2025

OAK BROOK, Ill. (June 3, 2025) — Using data from the Rotterdam Study in the Netherlands, researchers have uncovered that carotid artery plaques can undergo potentially dangerous changes over time in patients without symptoms, according to a study was published today in Radiology, a journal of the Radiological Society of North America (RSNA).

Atherosclerotic plaques are accumulations of fat, cholesterol and other substances in the arteries. Over time, these plaques can harden through a process called calcification. The degree of calcification is thought to promote plaque stability, which then potentially lowers the risk of potential rupture.

 Daniel Bos, M.D., Ph.D.

Daniel Bos, M.D., Ph.D.

Ruptured plaques can lead to the formation of a blood clot. If a clot forms in a carotid artery—the main artery that supplies blood to the brain—it can cause a stroke.

"It is important to remember that plaques that don't yet cause symptoms can rapidly evolve in ways that make them more dangerous," said study author Daniel Bos, M.D., Ph.D., an associate professor in Clinical Epidemiology and Neurovascular Imaging at Erasmus MC, University Medical Center Rotterdam in the Netherlands. "One of the key findings of our work is that calcified plaques may not be as harmless as once thought, since these plaques were found to be at risk of intraplaque bleeding, which in itself is the most important cause of plaque rupture and subsequent stroke."

MRI imaging has become one of the best imaging modalities to evaluate carotid plaque composition. Improved imaging techniques are uncovering new evidence relating to plaque composition and how it evolves through the years, affecting plaque stability.

"Understanding this evolution could help doctors better predict stroke risk," Dr. Bos said.

For this study, researchers followed 802 patients from the Rotterdam Study—an ongoing large-scale, population-based study based in Rotterdam—aged 45 years and older with subclinical carotid artery atherosclerosis. Baseline MRIs of carotid plaque compositions were conducted and then again after six years. All participants were in the early stages of their disease, before any symptoms developed.

Over the course of the research, plaques became more complex, developing multiple components such as calcification, bleeding and fatty deposits. Changes towards more complex plaque composition were more common in men than in women.

The study showed that compared to plaques without calcification, plaques that already had calcification were twice as likely to develop internal bleeding, which is a key indicator of plaque vulnerability and potential rupture.

The researchers also did a simulation to predict plaque evolution beyond the six years. A simulated 30-year evolution showed that more than half of the participants who had single component plaques would develop into complex multicomponent plaques by the age of 70.

The researchers indicate that future studies should examine exactly how the different components within a plaque influence each other, for example how calcification affects intraplaque hemorrhage.

Given the study's demonstration of significant plaque evolution over time, Dr. Bos emphasized the importance of ongoing plaque monitoring and proactive risk factor management.

"Even if there are no symptoms, early signs of plaque in your carotid arteries can quietly become more dangerous over time," Dr. Bos said. "Regular check-ups and managing risk factors like blood pressure, cholesterol, smoking and diabetes are important, because plaque changes can happen without warning."

"Evolution of Subclinical Carotid Atherosclerotic Plaque Composition Using Serial MRI in the Rotterdam Study." Collaborating with Dr. Bos were Luoshiyuan Zuo, M.Sc., Maryam Kavousi, M.D., Ph.D., Hyunho Mo, Ph.D., and Meike W. Vernooij, M.D., Ph.D.

Radiology is edited by Linda Moy, M.D., New York University, New York, N.Y., and owned and published by the Radiological Society of North America, Inc. (https://pubs.rsna.org/journal/radiology)

RSNA is an association of radiologists, radiation oncologists, medical physicists and related scientists promoting excellence in patient care and health care delivery through education, research and technologic innovation. The Society is based in Oak Brook, Illinois. (RSNA.org)

For patient-friendly information on cardiac MRI, visit RadiologyInfo.org.

Thumbnail

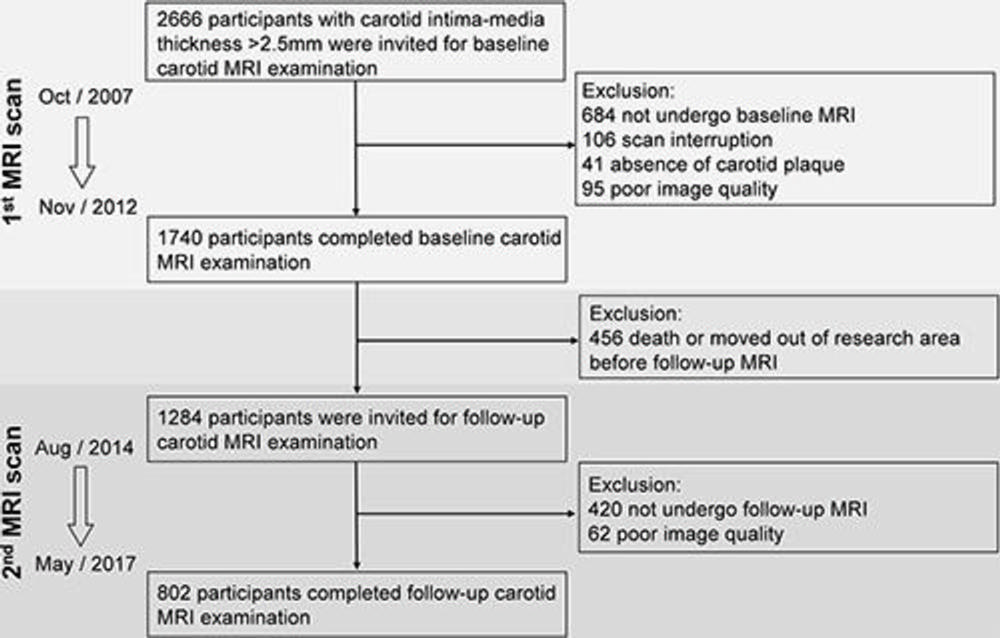

Figure 1. Study flowchart
High-res (TIF) version
(Right-click and Save As)
Thumbnail

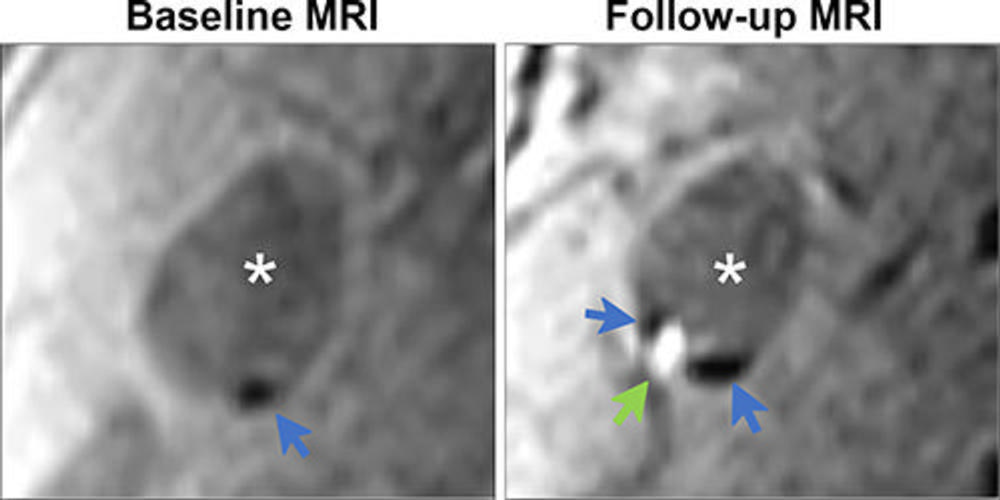

Figure 2. Demonstration of colocalization of pre-existing calcification and incident intraplaque hemorrhage (IPH) in the same plaque. Axial cross sections of the same plaque at the same arterial location on a scan obtained with a T1-weighted gradient-echo noncontrast MRI sequence in a 70-year-old female participant who was free of coronary heart disease and stroke before follow-up MRI. Baseline (left) and follow-up (right) MRI examinations. The blue arrows highlight calcification in a hypointense signal area, while the green arrow indicates IPH as a hyperintense signal. The asterisks mark the lumen of the carotid artery.
High-res (TIF) version
(Right-click and Save As)
Thumbnail

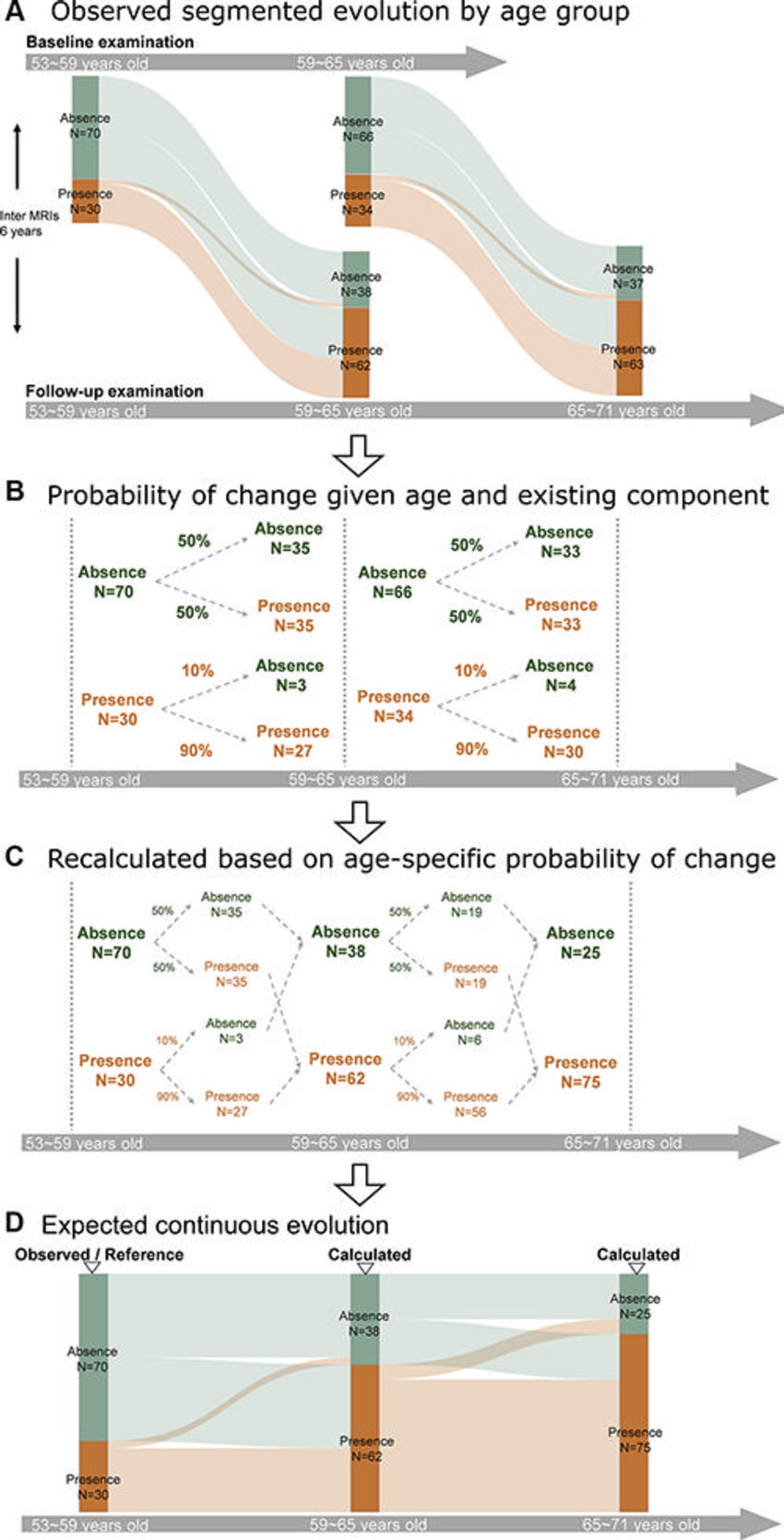

Figure 3. Sankey bar graphs show segmented and continuous evolution of carotid plaque compositions across 30 years. None indicates plaques free of calcification (calc), lipid-rich necrotic core (LRNC), and intraplaque hemorrhage (IPH). The x- and y-axes represent age groups and the age-specific distribution of plaque composition, while the translucent flows represent changes in plaque composition. (A) The evolution of plaque composition from baseline MRI (top x-axis) to 6-year follow-up MRI (bottom x-axis) by age group. (B) The 30-year continuous evolution of plaque composition. The distribution of plaque composition at baseline of 65–71 years serves as the reference group, and the distribution of other age groups is calculated using the probability of change—based on the Chapman-Kolmogorov equation—dependent on age group, sex, and pre-existing composition, as derived from A.
High-res (TIF) version
(Right-click and Save As)
Thumbnail

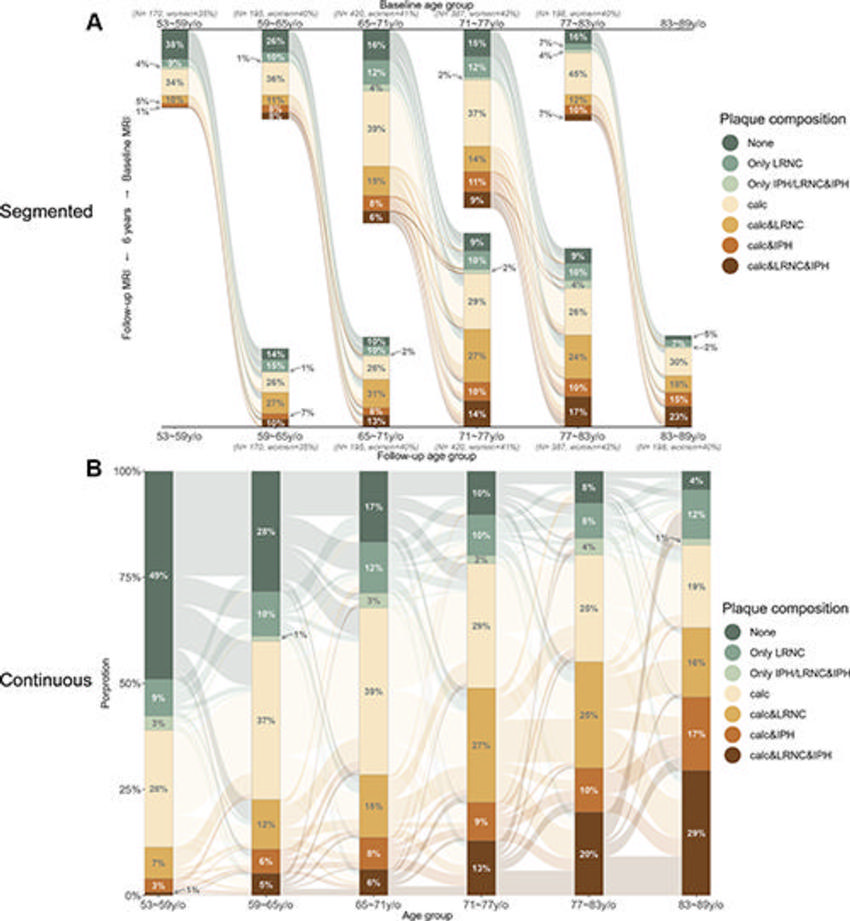

Figure 4. Sankey bar graphs show segmented and continuous evolution of carotid plaque compositions across 30 years. None indicates plaques free of calcification (calc), lipid-rich necrotic core (LRNC), and intraplaque hemorrhage (IPH). The x- and y-axes represent age groups and the age-specific distribution of plaque composition, while the translucent flows represent changes in plaque composition. (A) The evolution of plaque composition from baseline MRI (top x-axis) to 6-year follow-up MRI (bottom x-axis) by age group. (B) The 30-year continuous evolution of plaque composition. The distribution of plaque composition at baseline of 65–71 years serves as the reference group, and the distribution of other age groups is calculated using the probability of change—based on the Chapman-Kolmogorov equation—dependent on age group, sex, and pre-existing composition, as derived from A.
High-res (TIF) version
(Right-click and Save As)
Thumbnail
Figure 5. Bubble chart shows sex differences in the changes of plaque composition. None indicates plaques free of calcification (calc), lipid-rich necrotic core (LRNC), and intraplaque hemorrhage (IPH). The x- and y-axes show the carotid plaque composition at baseline and 6-year follow-up MRI, respectively, with each circle representing a unique change in carotid plaque composition during the follow-up period. Circle areas reflect the sample sizes for each plaque composition change. Color coding denotes the male-to-female ratio of sex-specific proportions, where red indicates female predominance and blue, male predominance. The plaque compositions are categorized and arranged into four groups—no detectable component, single component, two components, and three components—each separated by red dashed lines for clear visualization. Each transition between men and women is compared using the χ2 test, with P < .05 annotated in the figure. Men are more likely to have and develop multicomponent plaques with IPH (upper right corner). In contrast, plaque compositions among women tend to stay with no components or only one component (bottom left corner).
